可卸式橡胶止水带我公司专业生产厂家直销欢迎来电咨询

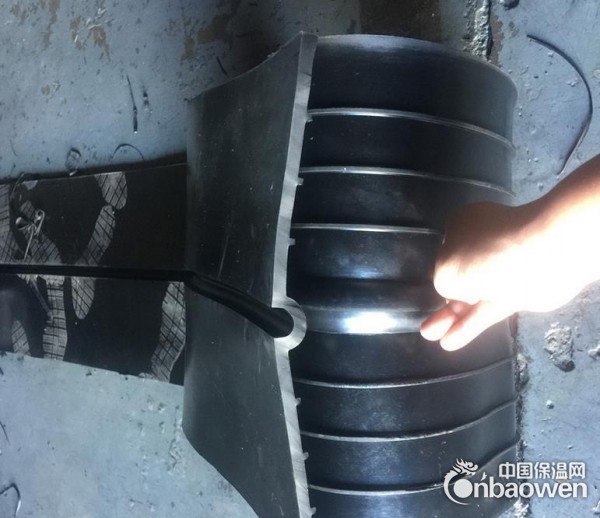

可卸式止水带是橡胶止水带的一种，为中间半圆或者圆型两边平板结构，中间半圆结构是为了伸缩缝变形时有较好的拉伸及压缩，关键点在于两这的平板，不是浇注到混凝土中的，是混凝土施工完成后，经开槽安装膨胀螺栓及钢板安装在混凝土表面的。可卸式止水带可作为后期补救的一种防水措施，若伸缩缝漏水，可后期补入一层可卸止水带，这也就解释了为什么可卸，若出现可卸式止水带也被破坏，可将原来的卸掉，再重新安装一层。
The detachable sealing strip is a rubber strip, intermediate or semicircle circular plate structure on both sides, the middle semicircle structure is to expansion joints with better tensile deformation and compression, the key point is that the two flat, not to pouring concrete, concrete construction is completed, the installation of expansion slot the bolt and the steel plate are installed on the surface of concrete. The removable water stop can be used as a waterproofing measure for later remedies. If the expansion joint leaks, a layer of unloading water stop can be added later. This explains why it can be unloaded. If the unloading water stop is broken, it can be unloaded and reinstalled again.
可卸式橡胶止水带安装固定：
The unloaded rubber water stop belt is fixed and fixed.
（1）预埋螺栓的施工预埋螺栓须提前固定在钢板上,然后再浇筑预埋在混凝土中。应采用加钢板止水片的预埋钢板,预埋钢板下部的混凝土要仔细振捣。为便于安装可卸式止水带,变形缝的转角部位应做成圆弧形或45°角,圆弧半径应根据预埋螺栓的长度确定,以2个相邻螺栓头的距离不影响止水带和止水带夹板安装为准,一般以250 - 300 ε为宜。预埋钢板和夹板亦应做成相同形状。预埋螺栓时,应在螺栓上涂抹黄油后套短PVC管保护。
(1) the pre buried bolt for the pre buried bolt must be fixed to the steel plate in advance and then put into the concrete. The pre buried steel plate with steel plate should be used, and the concrete under the buried steel plate should be carefully vibrated. To facilitate the installation of the detachable waterstop, the corner part of the deformation joint should be circular or 45 degrees. The radius of the arc should be determined according to the length of the embedded bolts. The distance between the 2 adjacent bolts does not affect the installation of the waterstop and the watertight belt splint. Generally, the 250-300 e is suitable. Pre buried steel plates and splints should also be made in the same shape. When the bolt is buried, the bolt should be applied to the bolt to protect the bolt from the short PVC tube.
（2）可卸式止水带的固定应在现场根据螺栓实际位置采用皮带冲打孔固定止水带,以保证其位置的准确性。在整个安装过程中,切不可使劲拉拽止水带。可卸式止水带与夹板间以及与预埋钢板间均应用石棉纸板或软金属片衬垫严密。
(2) the fixation of the unloaded water stop belt should be fixed at the actual position of the bolt to fix the water belt with a belt punching hole to ensure the accuracy of its position. During the entire installation, the water belt must not be pulled hard. The cushions of asbestos board or soft metal sheet are applied between the unloaded water stop belt and the splint and the pre buried steel plate.
